MBT 7250 EUROSYSTEM VP 410159

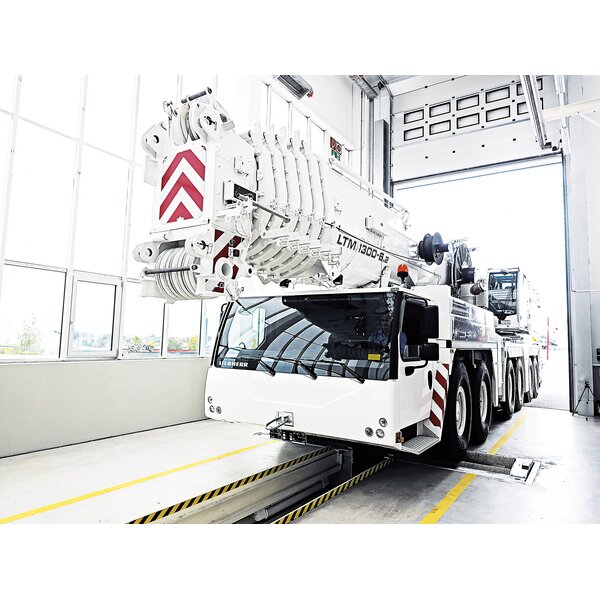

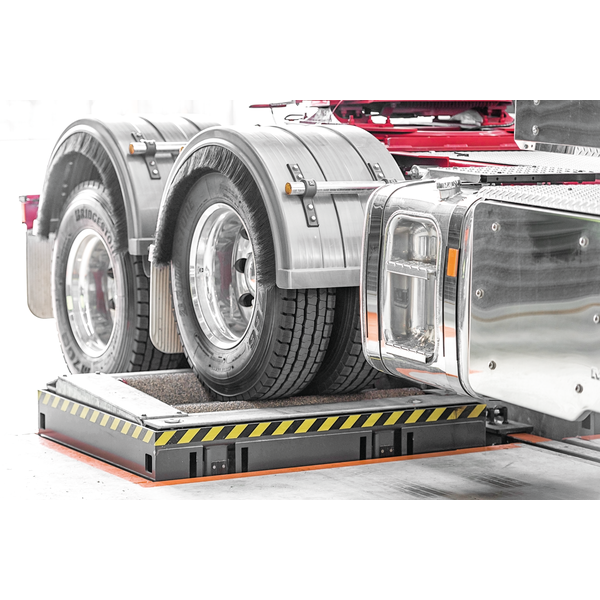

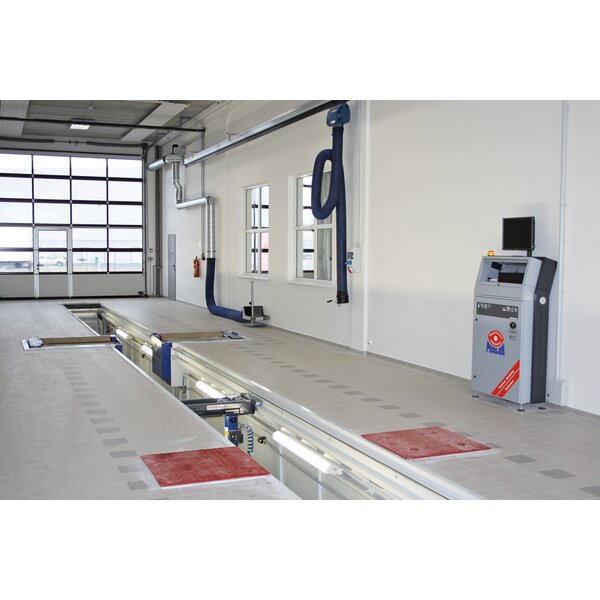

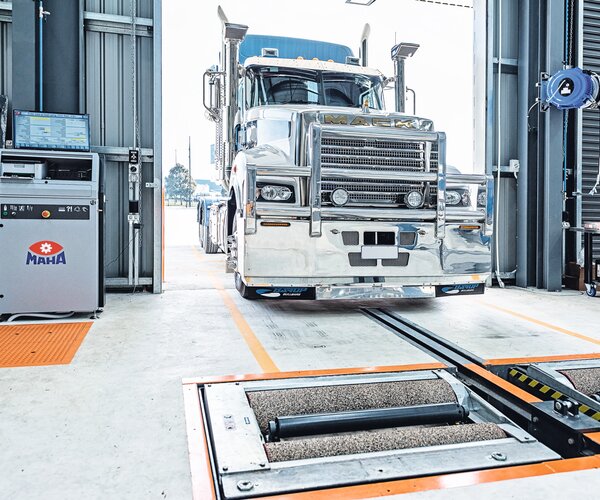

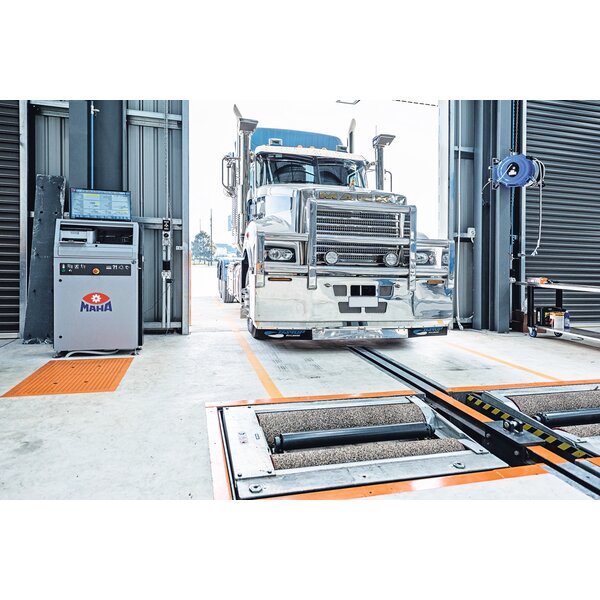

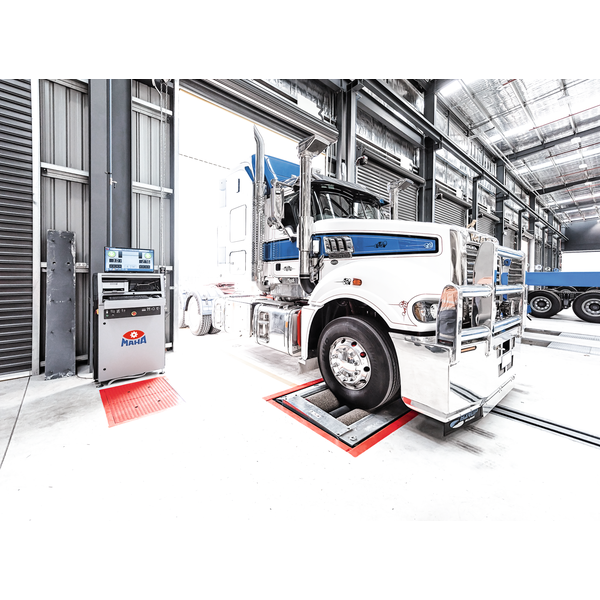

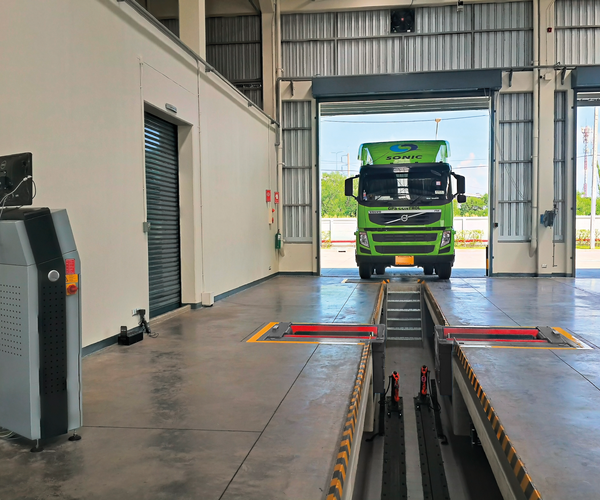

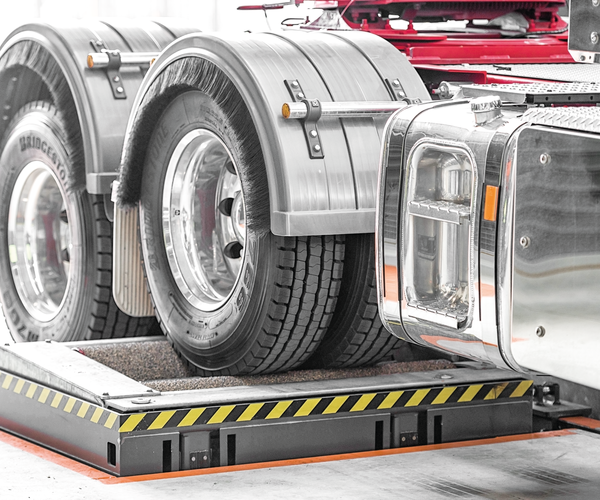

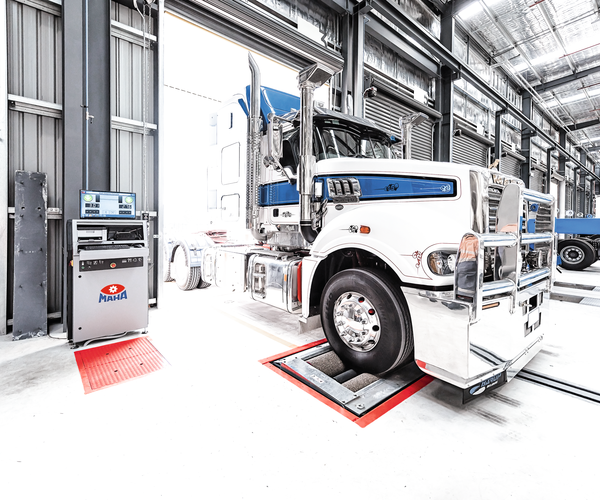

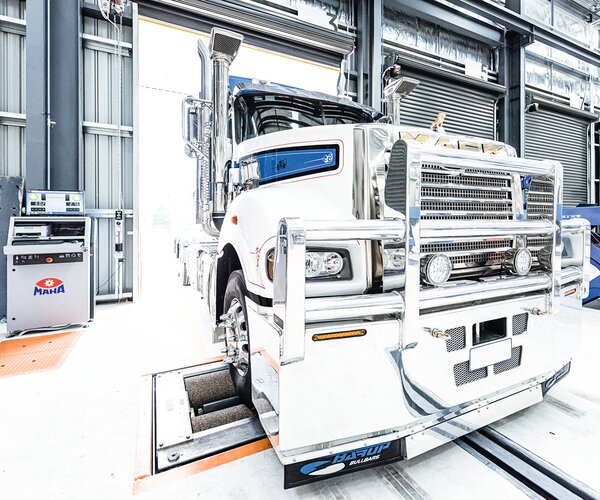

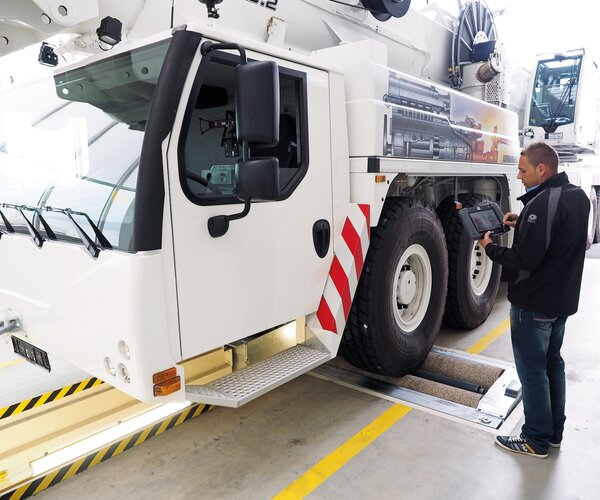

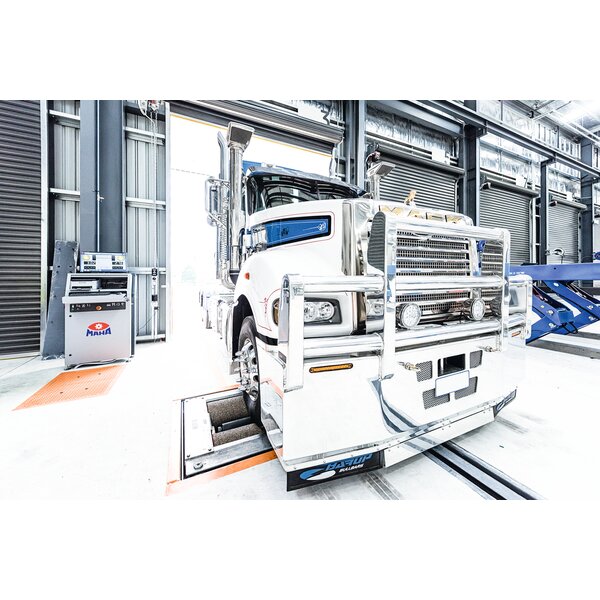

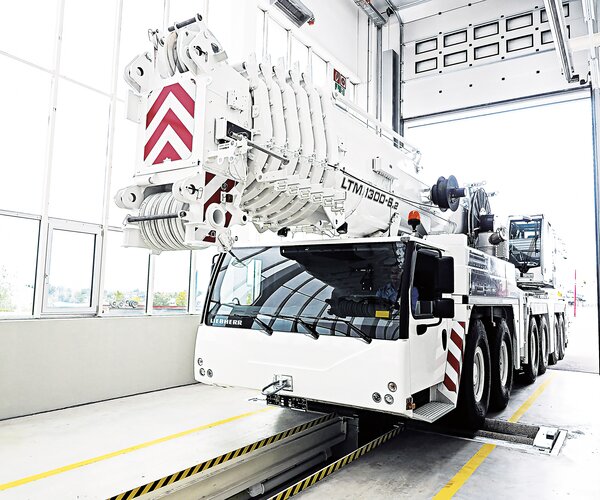

The test-lane-compatible roller brake tester MBT 7250 EUROSYSTEM is designed for the brake testing of trucks with axle loads of up to 18.0 t and is ideal for truck diagnostics in situations of high vehicle throughput. Its large sensor roller, with a diameter of 100 mm, guarantees measurable coverage across all tyre dimensions. As it is possible to connect additional EURO floor units, the brake tester can be used as a base module for the setting up of test lanes.

product details / scope of delivery

Description of the MBT 7250 EUROSYSTEM:

  • Perfectly suited to lorry diagnostics, even with a very high vehicle throughput
  • With the optionally available, integrated roller set lift:
    • For load simulation
    • For redistribution onan axle to be tested
    • No foundation modifications saves a substantial amount of structural effort
  • Service and installation-friendly design with maintenance flap
  • Large sensing roller with a diameter of 100 mm guarantees measurable coverage across all tyre dimensions

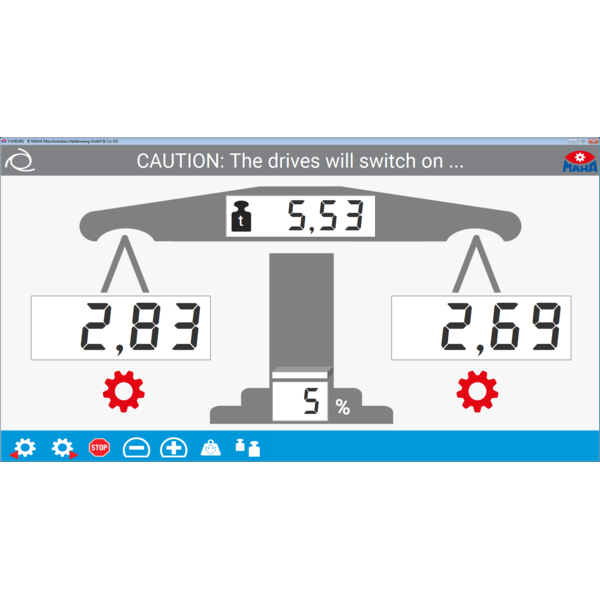

  • Visualisation of measured values, difference and graphics on monitor display

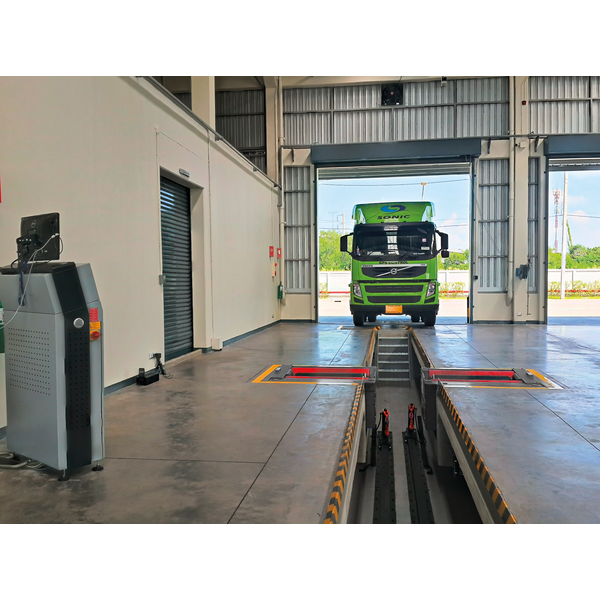

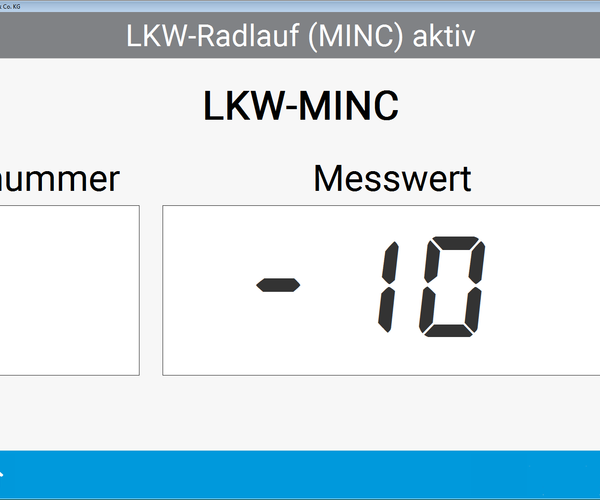

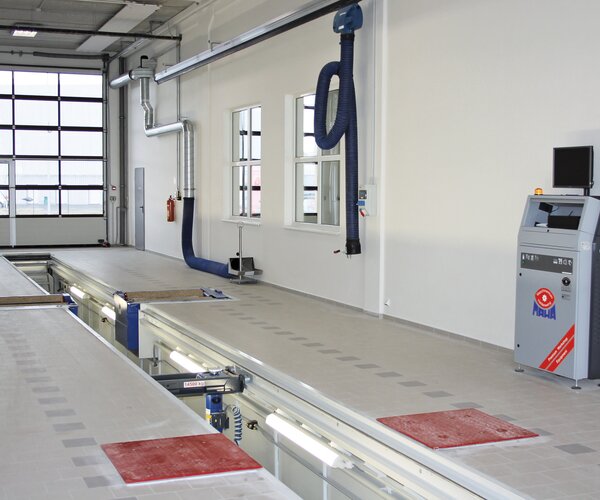

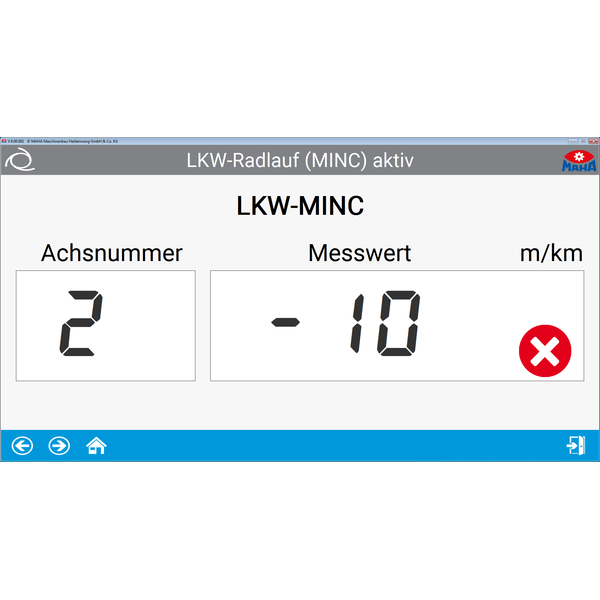

  • Test lane-enabled thanks to possibility of connecting MSD 3000 / MINC / TPS EURO floor units


  • Comprehensive package of functions for professional testing, such as:
    • Delayed automatic switch-on after entering the tester
    • Automatic start-up monitoring supplied as standard to avoid tyre damage

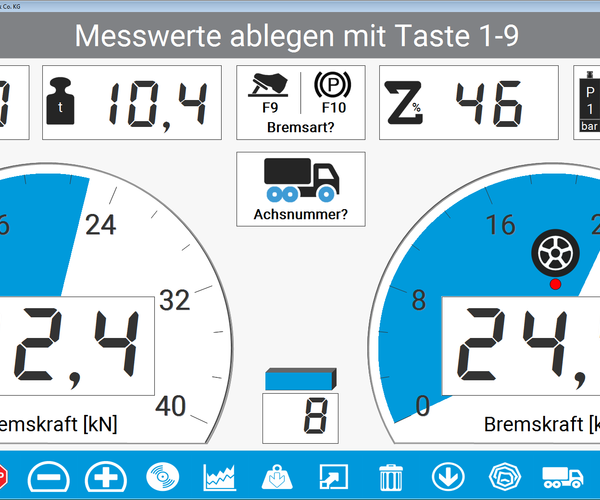

    • Automatic slip cut-off with pointer stopand automatic restart already included as standard
    • Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
    • Automatic cut-off after exiting the tester
    • Single-wheel switching for differentiated consideration of each wheel

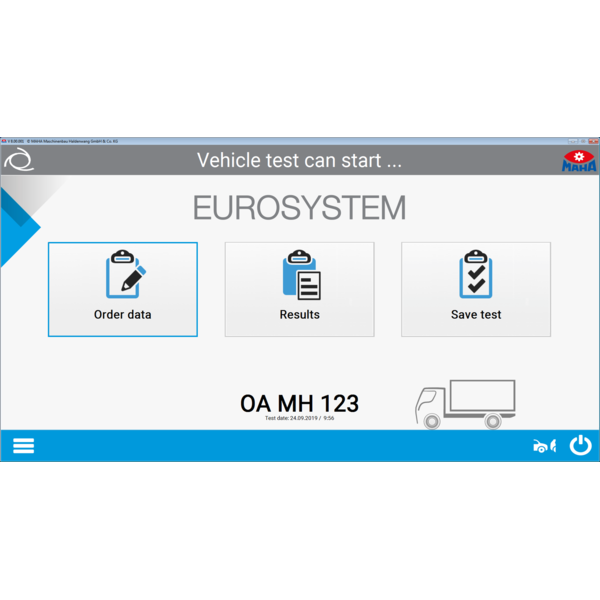

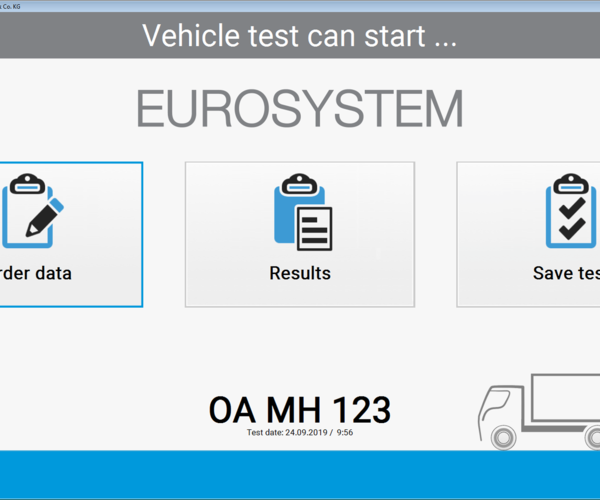

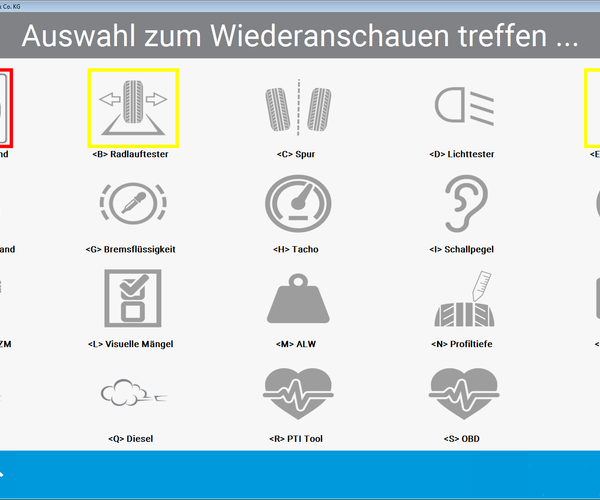

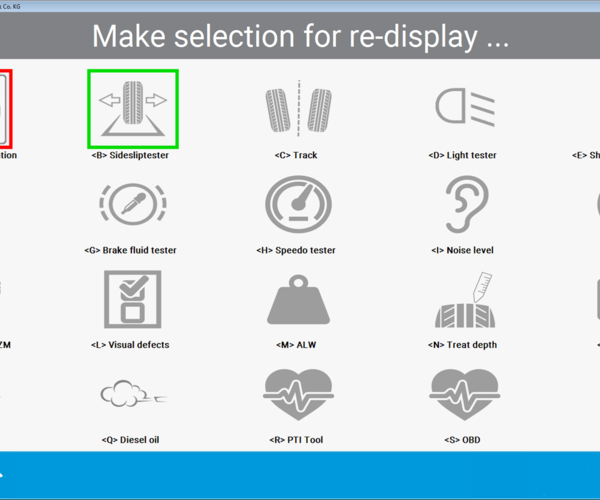

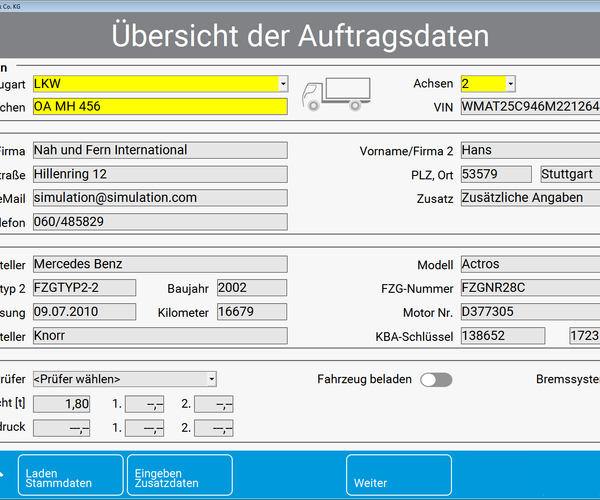

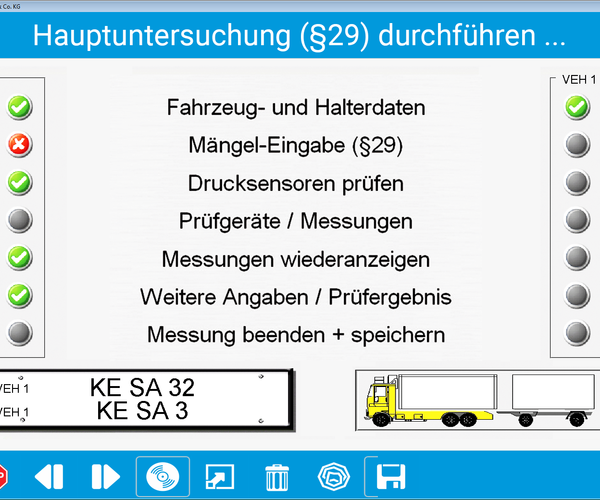

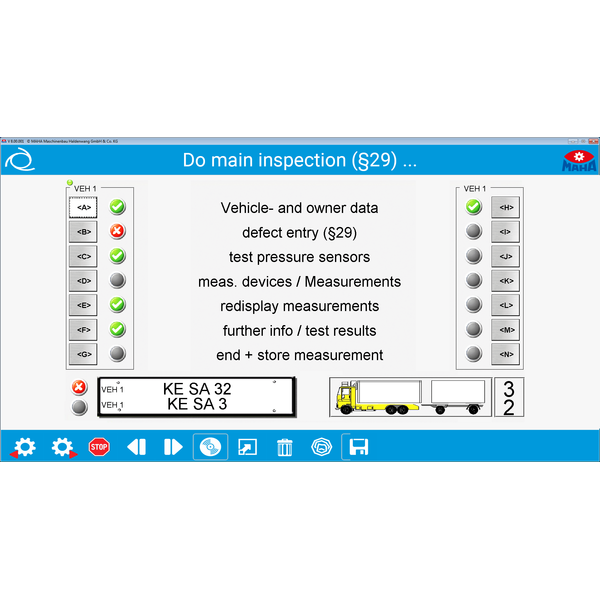

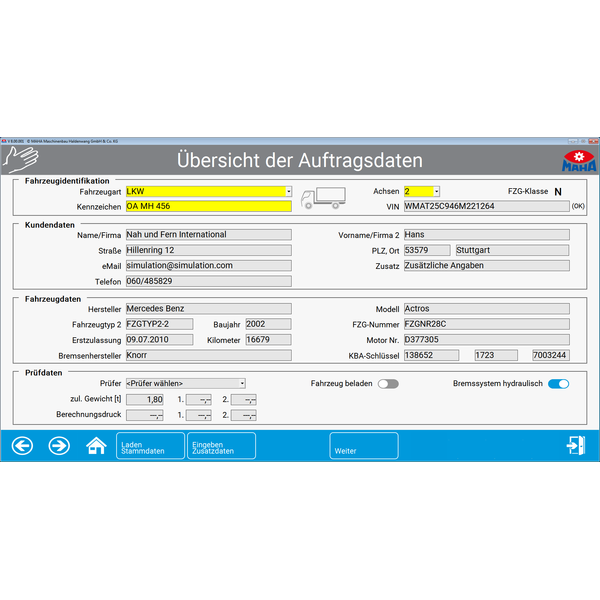

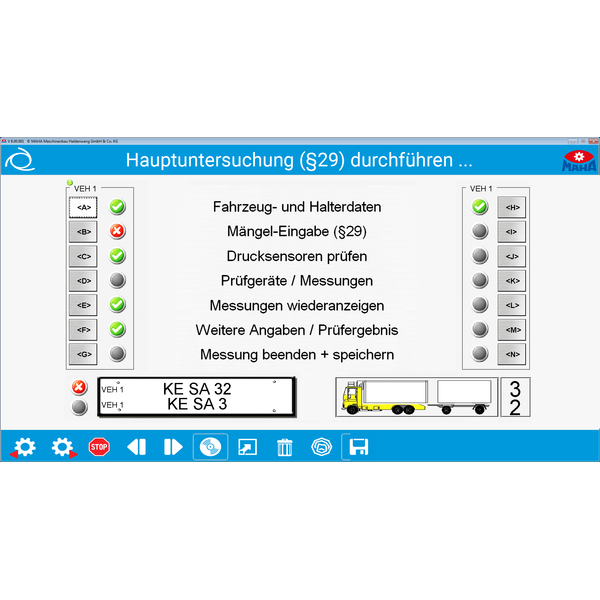

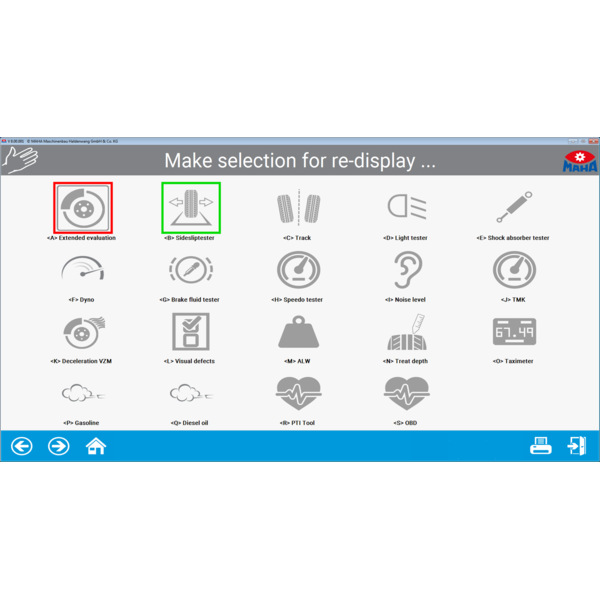

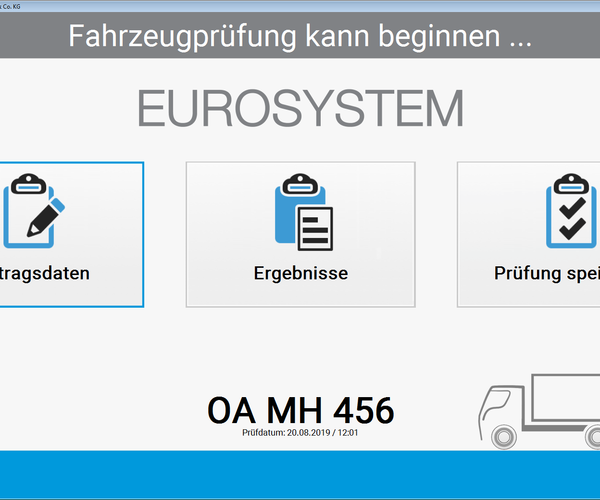

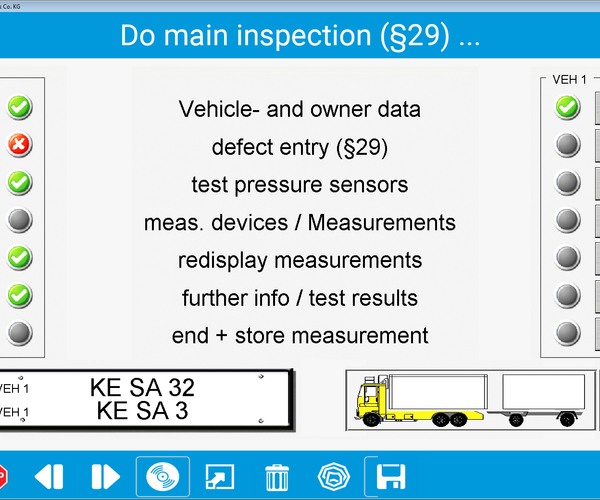

  • Intuitive-to-use EUROSYSTEM software for the highest expert standards with:

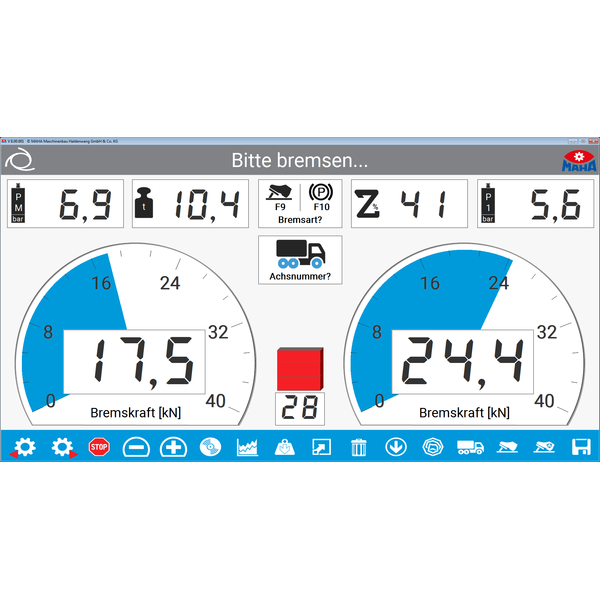

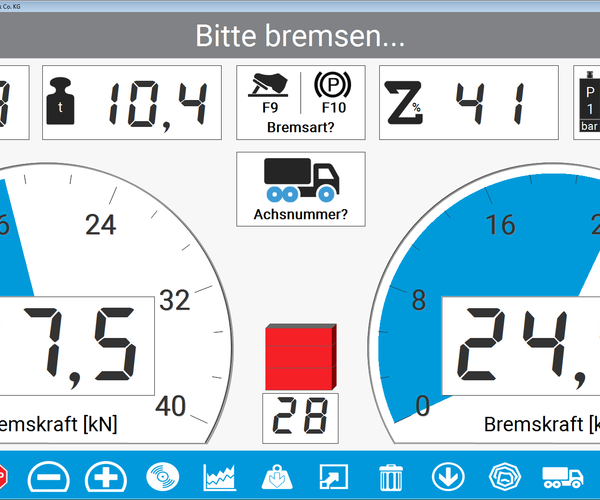

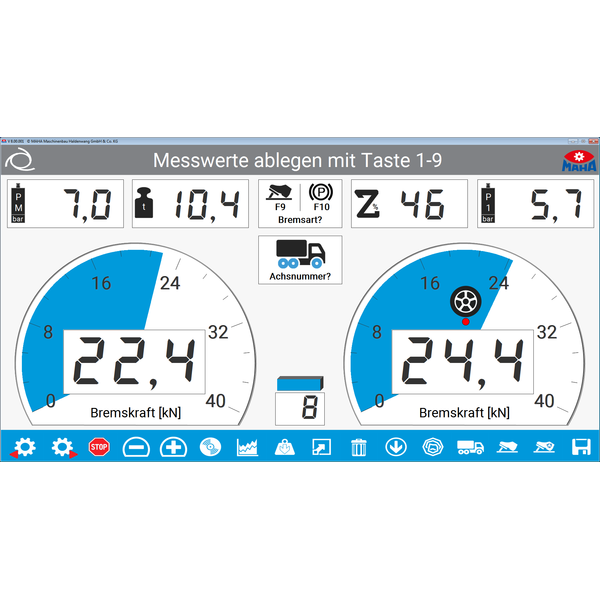

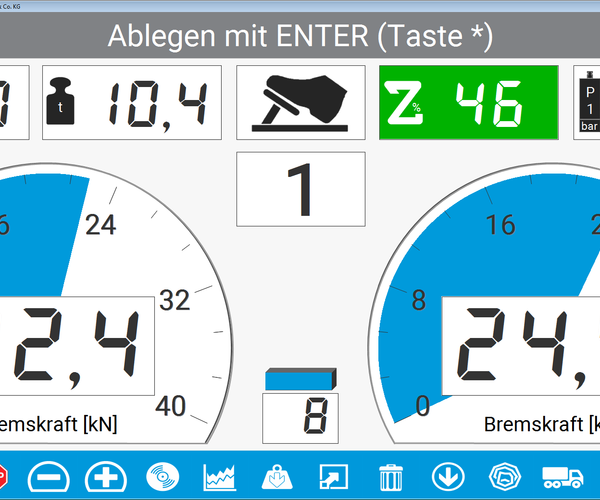

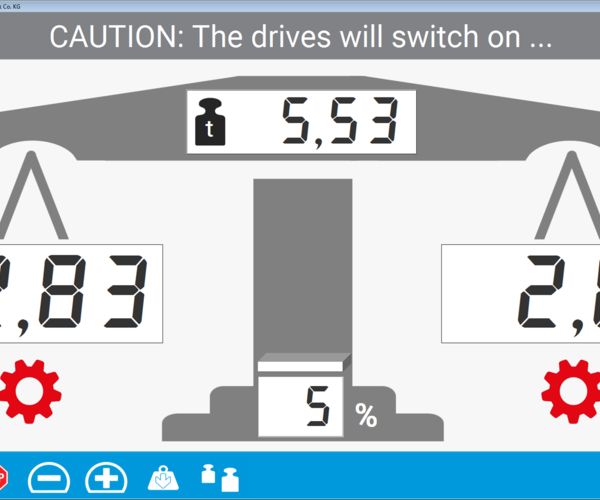

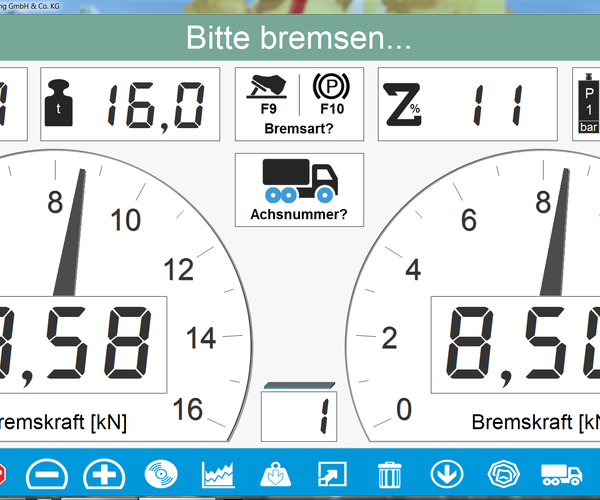

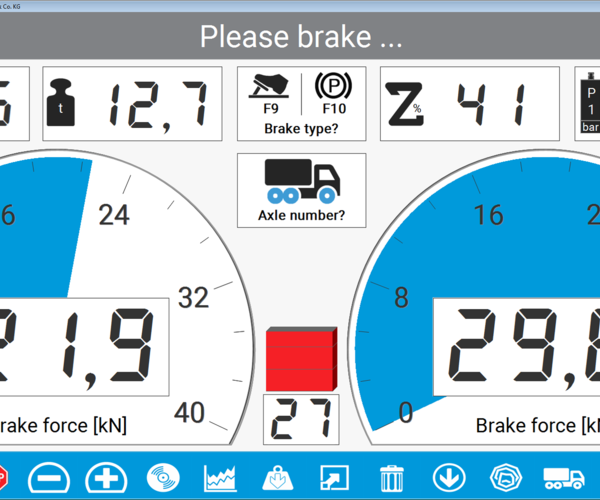

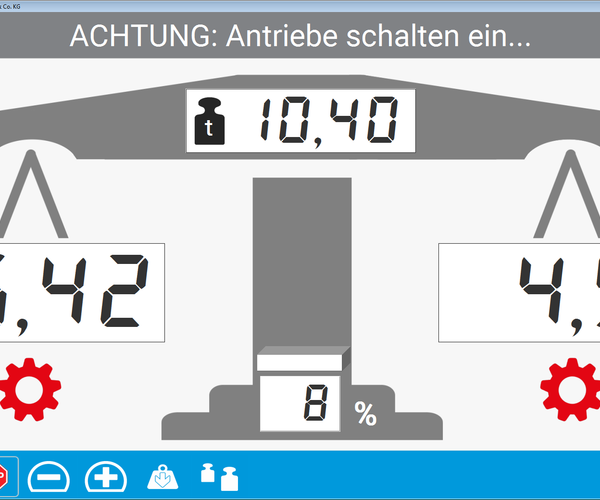

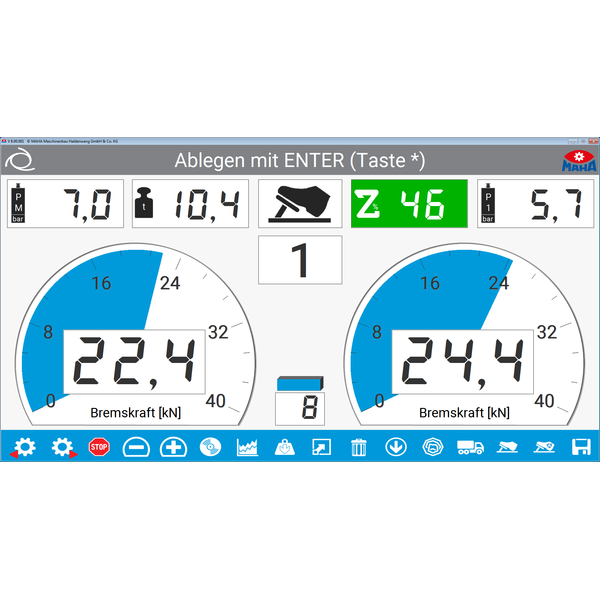

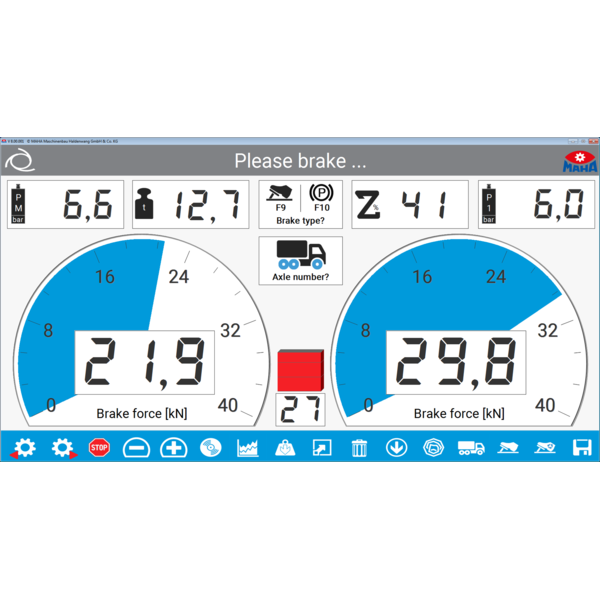

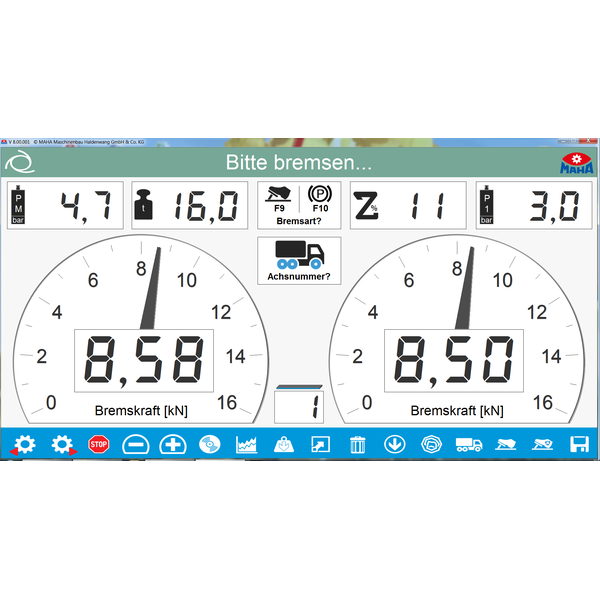

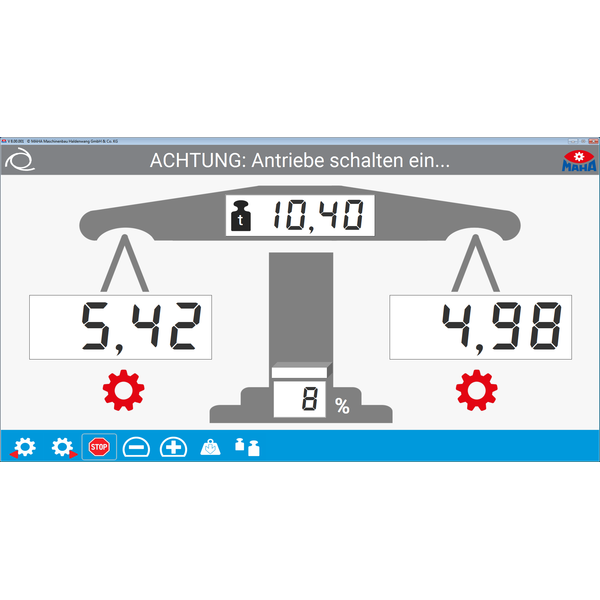

    • Round instrument display for the braking forces Additional displays for difference, decelerations, and optional scale and force sensors.
    • Integrated user guidance with easy-to-understand user instructions

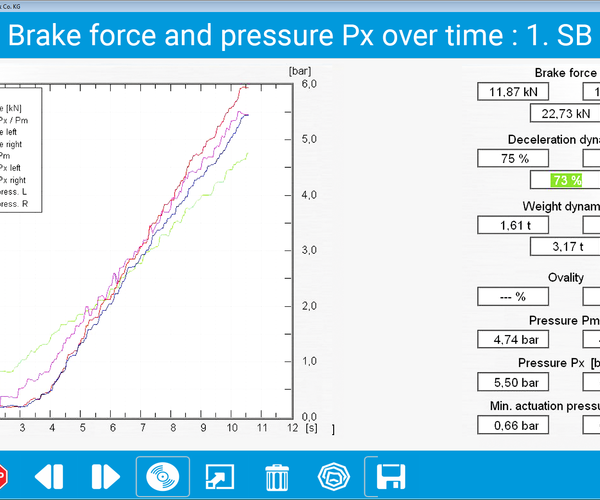

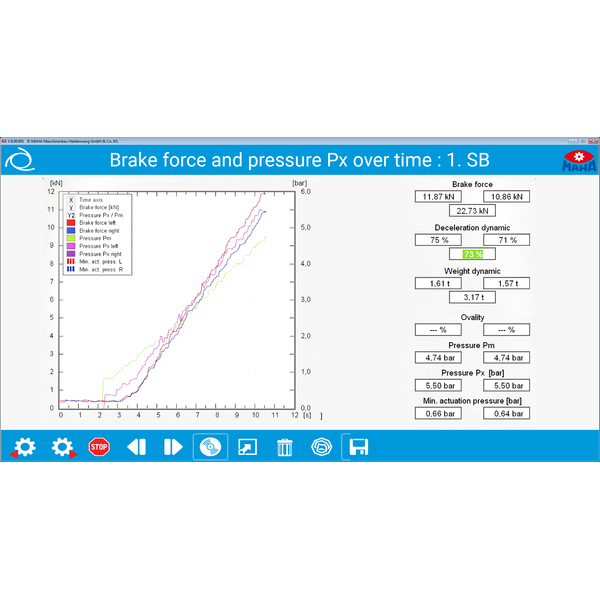

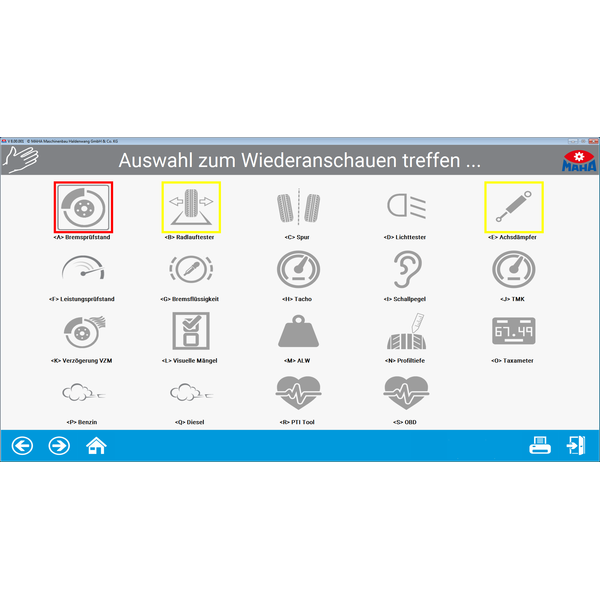

    • Continuous and graphic real-time display of all the measured values using the reference values time and force.
    • EUROSYSTEM supplied as standard with integrated SQL Server Express database
    • Multi-user capability option for productive allocation of the individual work packages to several workstations.
    • Easy to connect additional devicessuch as MLT 3000 to EUROSYSTEM
    • Configurable test report with all the measurement and evaluation results of the tests performed on a single print-out


  • Robust and long-lasting design due to:
    • Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
    • Roller surface welded
    • Optional, free plastic coating on the test rollers
    • 32-bit microprocessor electronics for process control and monitoring of all the safety functions
    • Lockable main switch
    • RS 232 interface connection
    • Splash-proof motors work reliably, even under high-stress environmental influences
    • Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
    • Internationally recognised TÜV certificate as per issue 149/2021 of the Verkehrsblatt [German Transport Gazette]
    • Star-delta circuit to avoid high inrush currents
    • RS 2 roller set design with space-saving motor integration underneath the test rollers
    • Rear roller elevated by 50 mm - guarantees highly precise measurement results, particularly for trailer axles.
    • Self-supporting divided roller set
    • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016


Description of the MCD 2000 communication desk:

  • Robust and multifunctional metal casing
  • Integrated switch cabinet for housing electronic components
  • Lockable drawer for keypad and PC mouse, plus storage compartment for small items of equipment
  • VESA standard bracket for holding the all-in-one PC or PC monitor
  • Can be extended with optional PC storage compartment or side shelves
  • Varnished with high-quality powder coating: window grey, RAL 7040 (switch cabinet) anthracite grey, RAL 7016 (side faces)

Dimensions of
communication desk (HxWxD)approx. 1230 x 860 x 350 mm
with printer compartment
option (HxWxD)approx. 1560 x 860 x 420 mm


Scope of delivery:

  • MCD 2000 communication desk with integrated switch cabinet
  • MBT 7000 RS 2 rollerset with preparation for weighing equipment

Downloads

Sales documents

Brochures
Brochure MAHA EUROSYSTEM-V8
DE EN
Brochure (Printable version) MAHA EUROSYSTEM-V8 print
DE EN
Brochure MBT-SERIES for all vehicle classes
DE EN
Brochure (Printable version) MBT-SERIES for all vehicle classes
DE EN
Technical Datasheet
Technical Datasheet MBT 7250 EUROSYSTEM
DE EN
Technical Datasheet (Printable version) MBT 7250 EUROSYSTEM
DE EN

Technical documentation

Operating Instructions
Operating Instructions MBT EUROSYSTEM
DE EN ES FR
Operating Instructions EUROSYSTEM V8
DE EN

Technical Data

Technical data:

Axle load (can be driven over)18000 kg
Drive power2 x 11 kW
Test speed3 km/h
Roller length1150 mm
Roller diameter265 mm
Roller axle distance475 mm
gG fuse63 A
Power supply3/N/PE 400 V 50 Hz
