product details / scope of delivery

  • Emission tester stands out due to limited weight and compact design
  • Short warm-up time, quick measurement readiness
  • Time-saving and easy testing/diagnosis of opacity/particle concentration using the partial flow method with free acceleration or engine under load

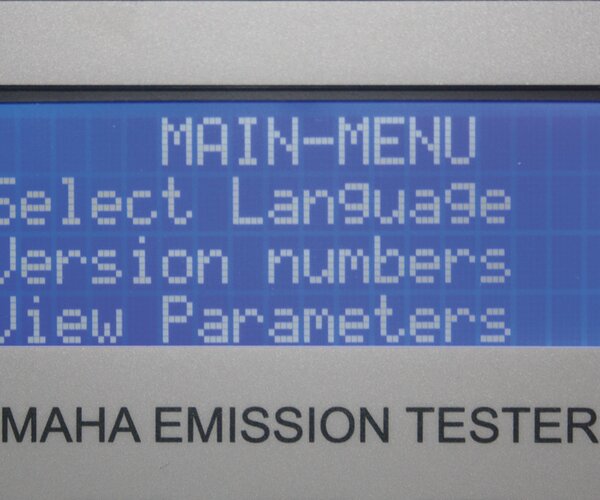

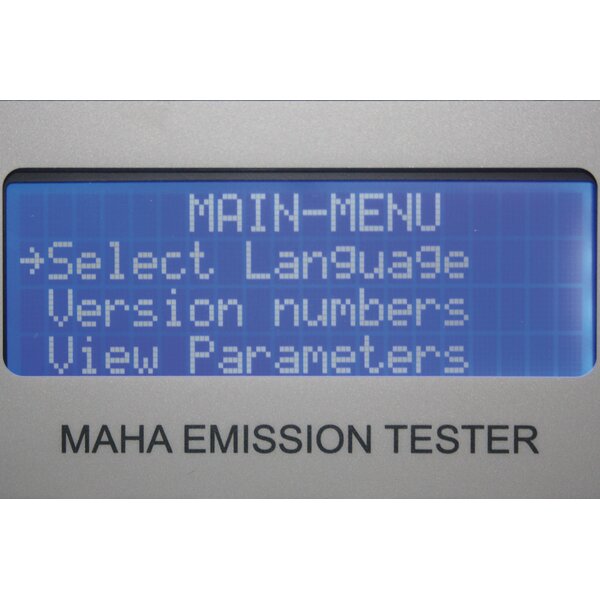

  • Intuitive operation, clear structure in emissions testing process as set out in current guidelines 5 enable minimum cycle times
  • Varied and simple network connection options LAN / WLAN (optional)
  • The MAHA VCI makes EOBD analysis easy
  • Official German PTB-approval 18.09

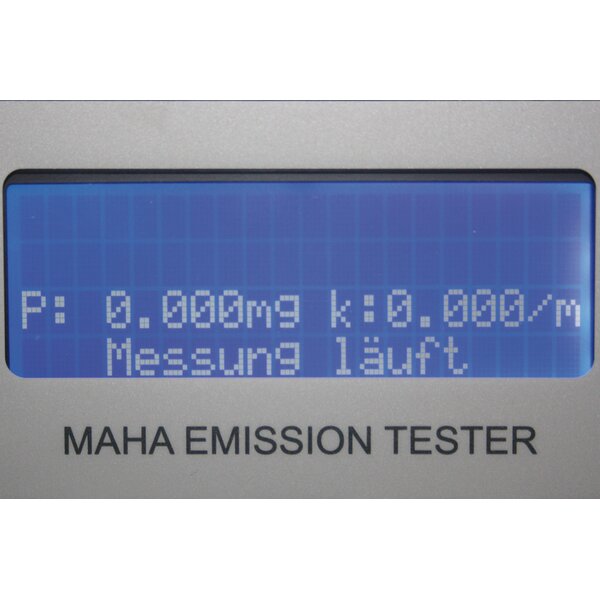

  • Instantaneous or continuous measurement
  • Innovative method for separation of condensed water thanks to active water separator
  • Options:
    • W-LAN interface


Scope of delivery:

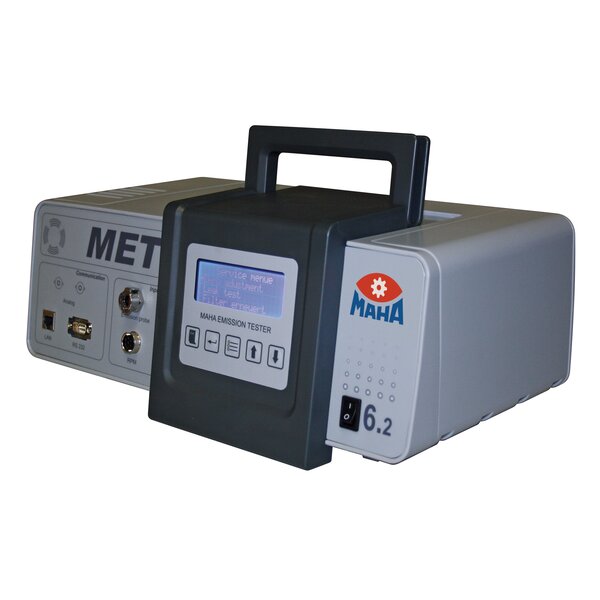

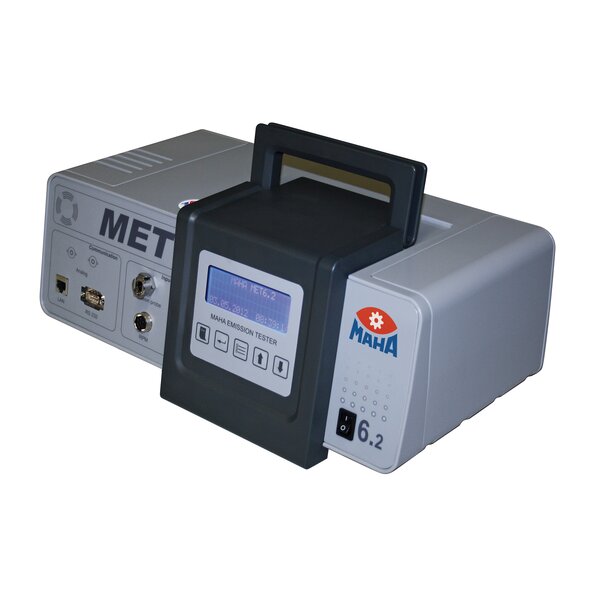

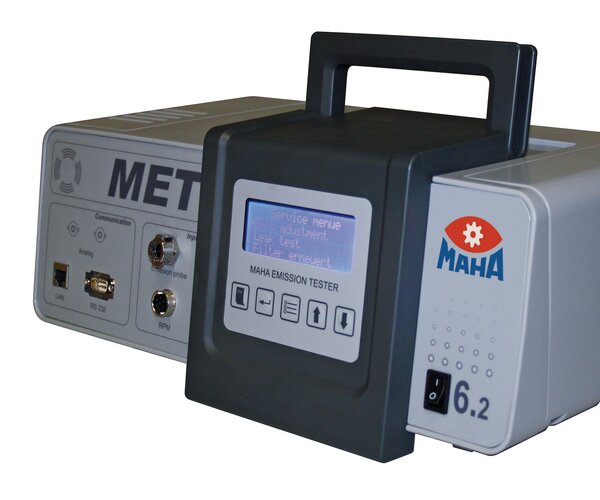

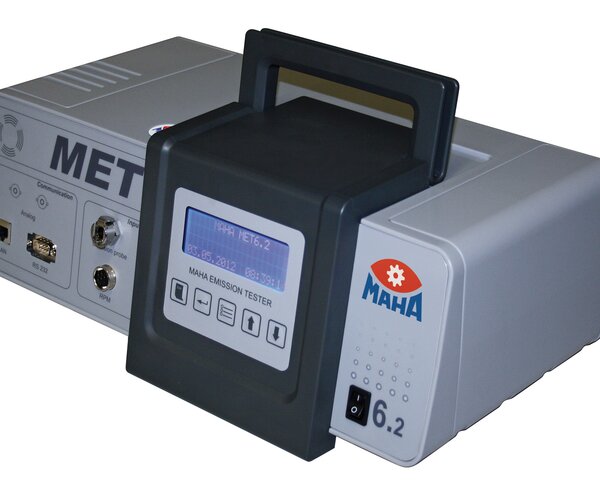

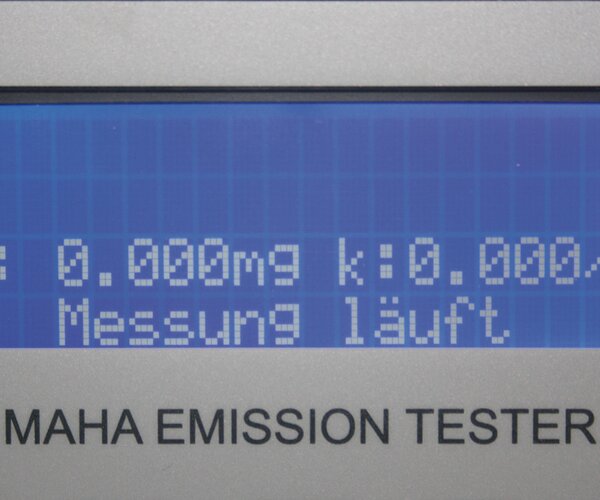

  • Basic device (opacimeter) opacity measurement device/ particle concentration measurement device in high-quality synthetic casing with integrated display unit and keypad
  • Steel mesh emission probe, 600 mm, 2000mm probe tubing (optional 4000 mm)
  • LAN interface with LAN cable
  • Power supply unit 110V - 230V, 50/60Hz

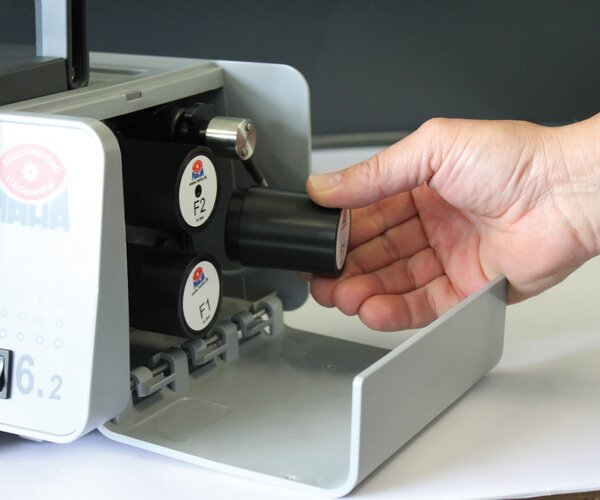

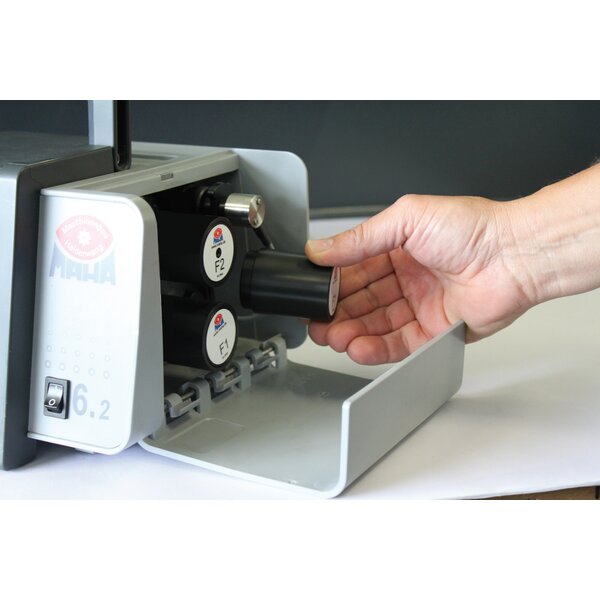

  • Main filter, zero filter and condensate filter
  • Transparent drain hose for condensed water with collecting tank
  • 2 replacement filters, 2 replacement seals
  • Measurement software for continuous measurement without country-specific test procedure


Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical Data:

Measurement principleabsorbance measurement
Heat-up time for measuring cell150 s
Dimensions (L x W x H)406 x 225 x 160 mm
Weight .approx. 4.6 kg
Power supply110-230V 50/60 Hz
On-board voltage connection10-30 V, DC
Measuring range, turbidity0-100%
Measuring range, absorption coefficient0-9.99 m-1
Resolution, absorption coefficient0.01 m-1
Measuring range, particle concentration1-1100 mg/m³
Resolution, particle concentration1 mg/m³
