product details / scope of delivery

Description:

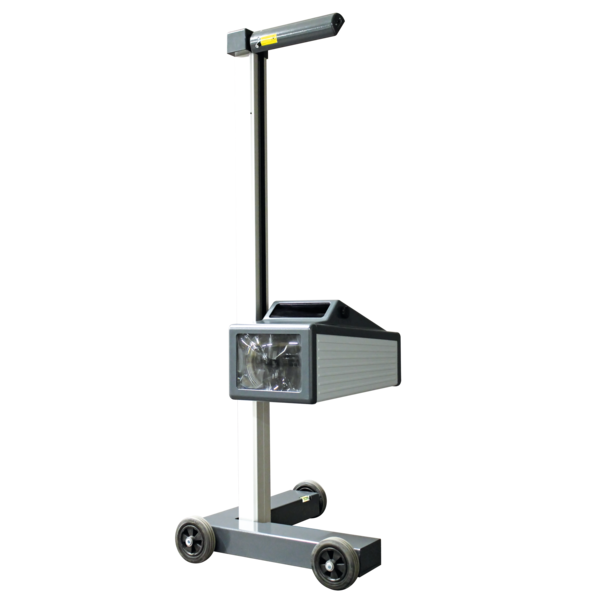

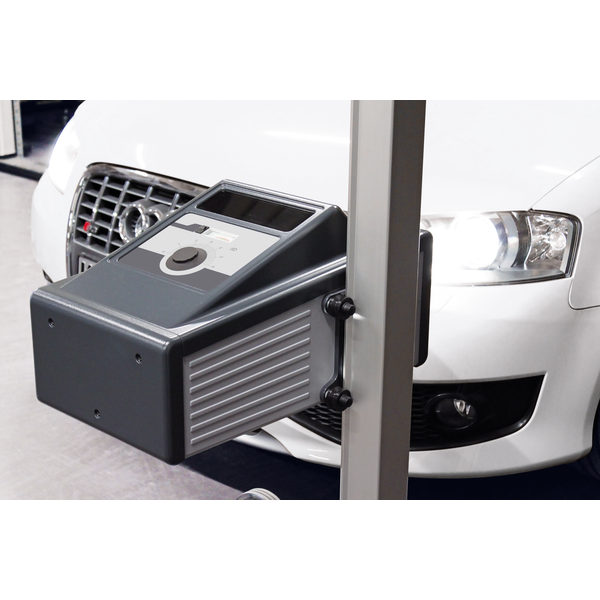

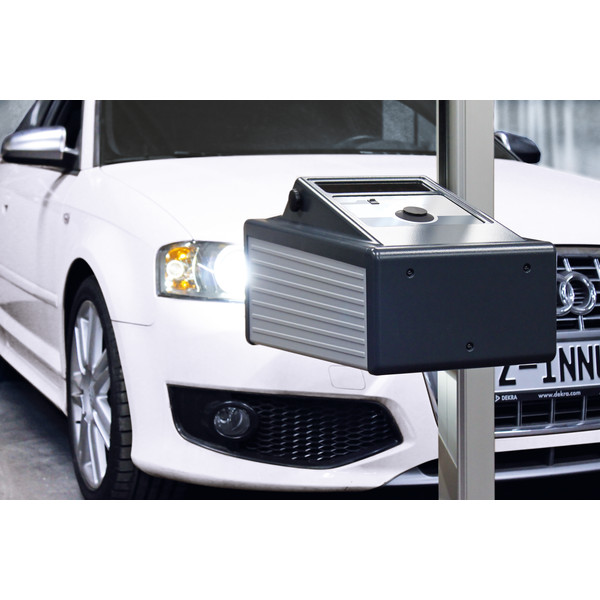

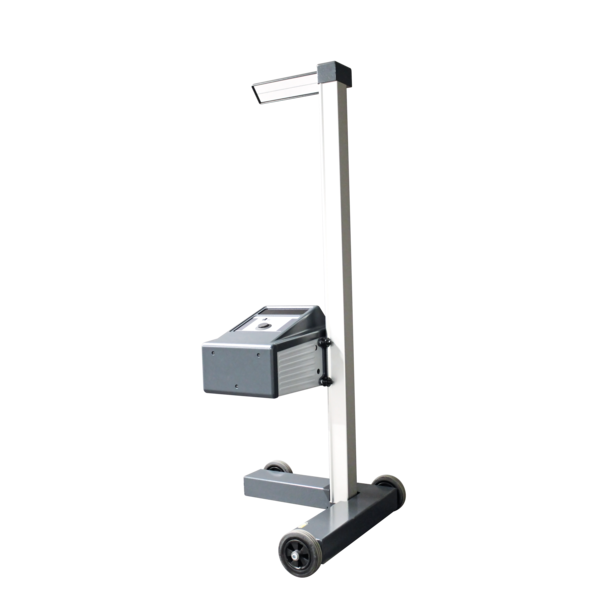

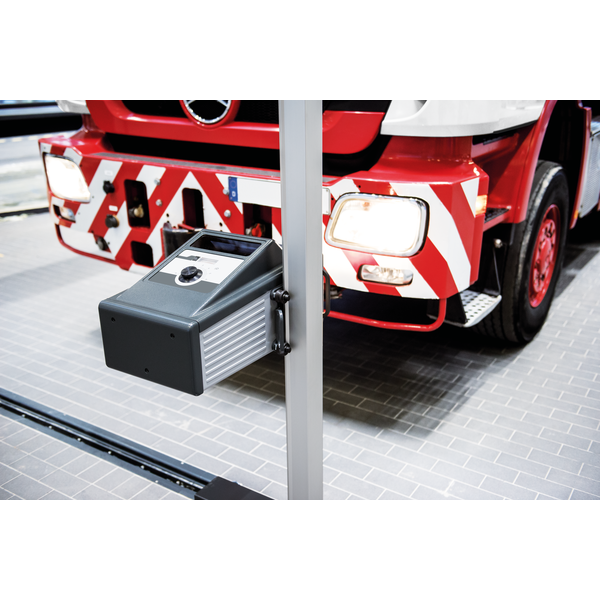

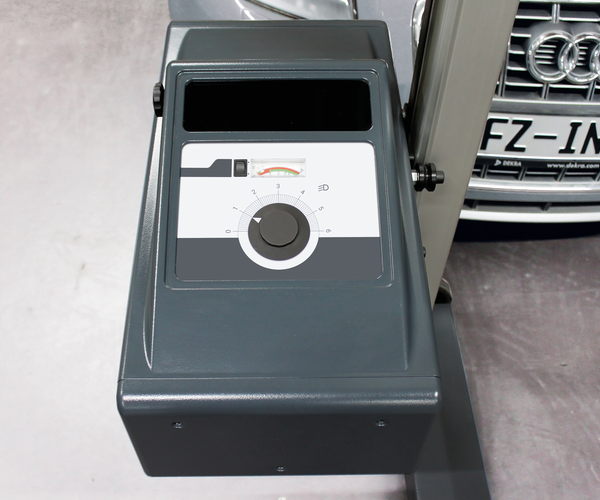

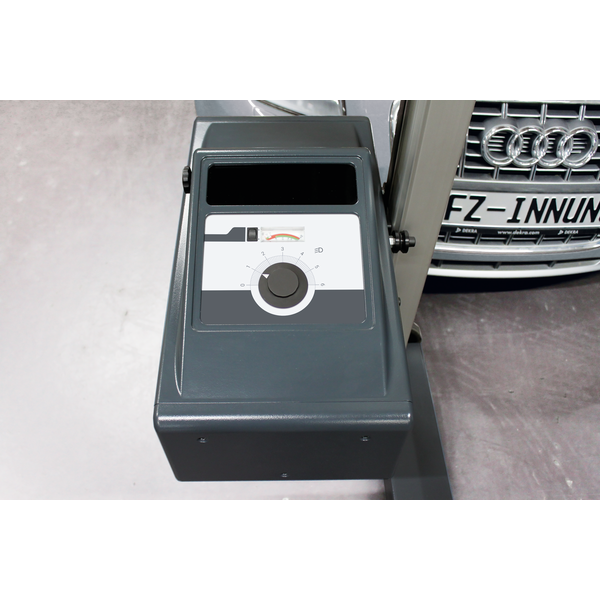

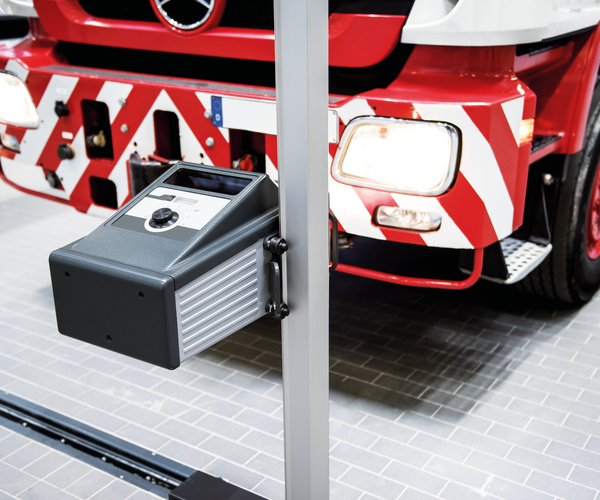

  • Analogue device for quick and accurate testing and adjustment of vehicle headlights

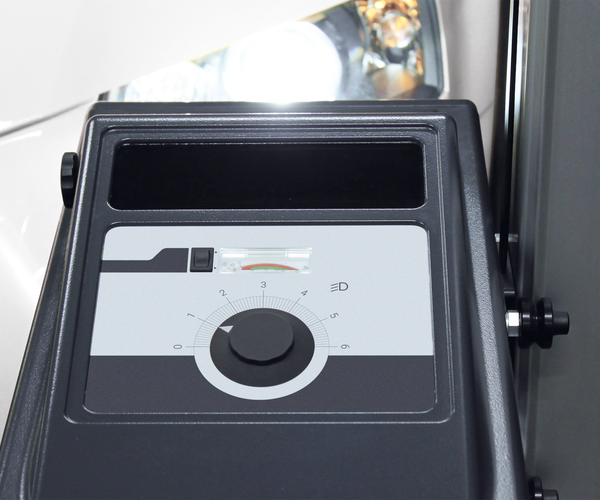

  • Height-adjustable projection screen with % scale
  • Subjective analysis of results based on visual assessment of the headlight projection on the screen

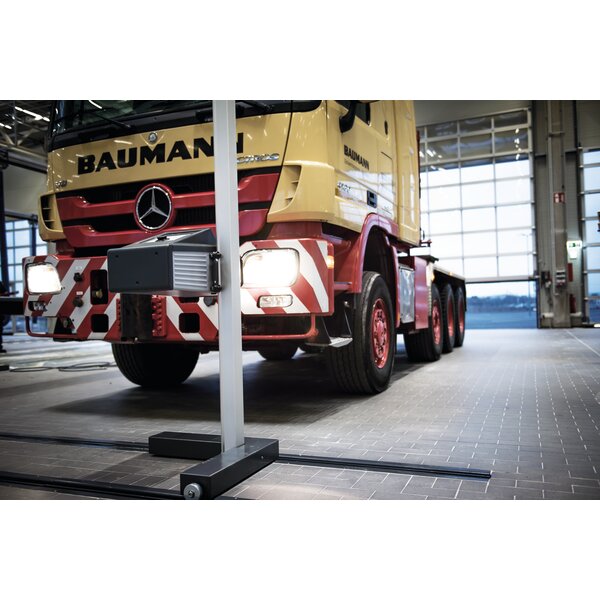

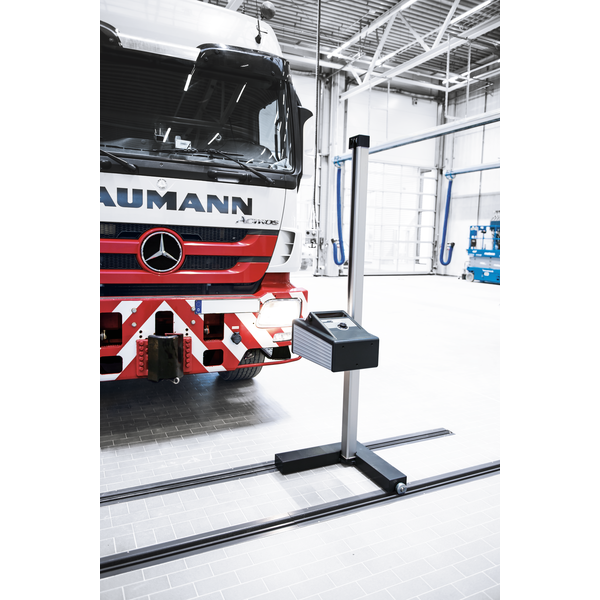

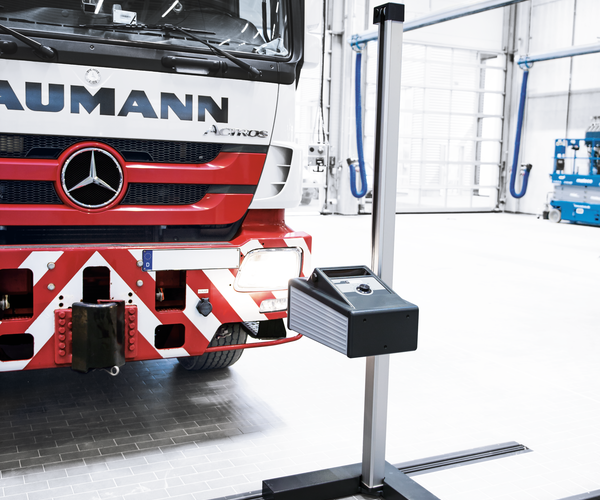

  • Robust construction, also suitable for test lanes
  • Rotatable mirror for device alignment to vehicle

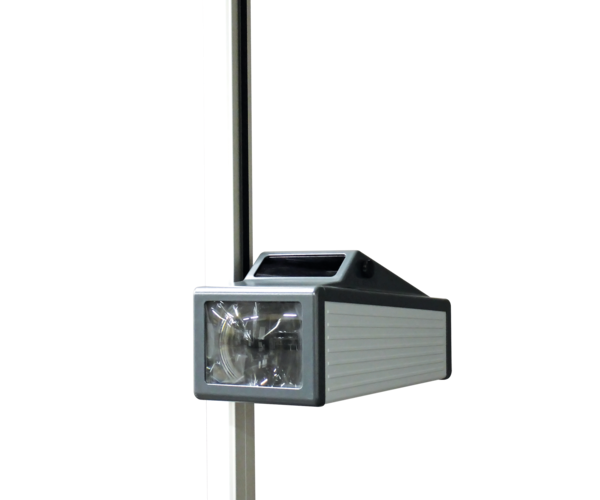

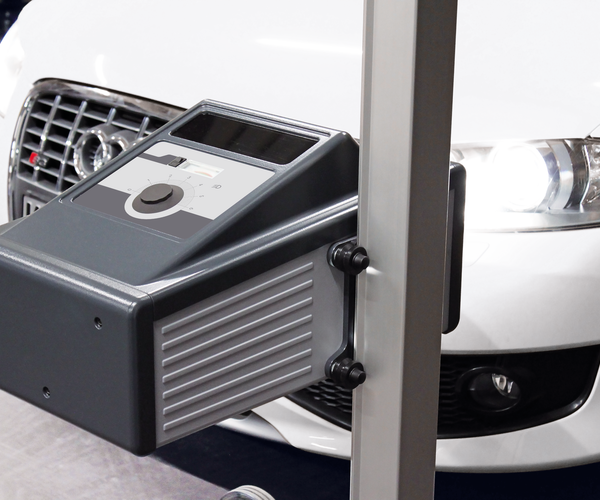

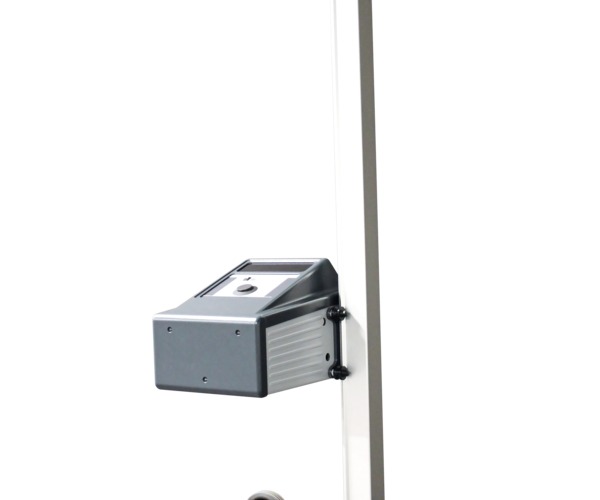

  • Automatic latching of the light collecting box to the precision aluminium guide column facilitates handling and optimises reproducibility
  • Extremely thin Fresnel lens made from material with optimised refractive index for suppressing blue and red fringing increases measurement accuracy significantly

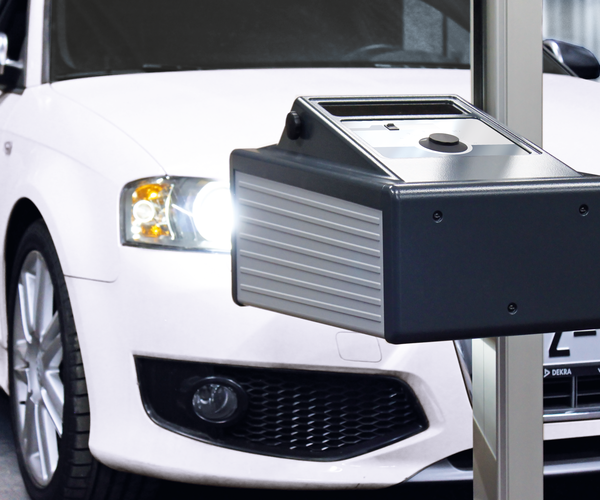

  • Large Fresnel lens for easy positioning in front of the headlights helps speed up the entire set-up process
  • Anodised heat deflection sheet to prevent overheating as a result of direct sunlight even without use of the device covering hood

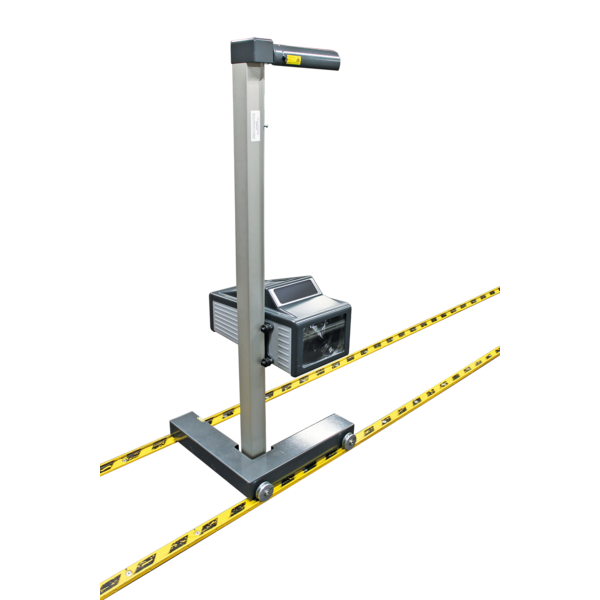

  • Pre-configured as standard for use on our optional semicircular profile rail stainless steel, so that equipment runs in straight line after alignment


Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical Data:

Measuring range:
Underneath0 - 600 mm/10 m (0-6%)
Left0 - 1000 mm/10 m (0-10%)
Right0 - 1000 mm/10 m (0-10%)
Light intensity0 - 40000 cd
Illuminance0 - 64 lx
Measurement distance100 - 500 mm
Adjustment track lens centre over floor240 - 1500 mm
Temperature range+5 - +40°C
Relative humidity20 - 80 %
Dimensions (H x W x D)1770 x 655 x 720 mm
