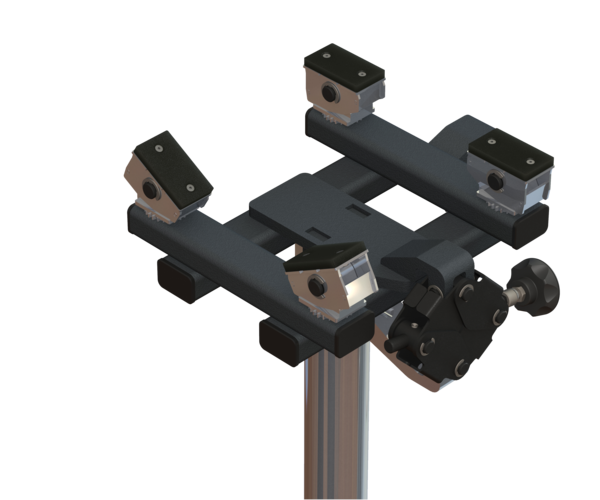

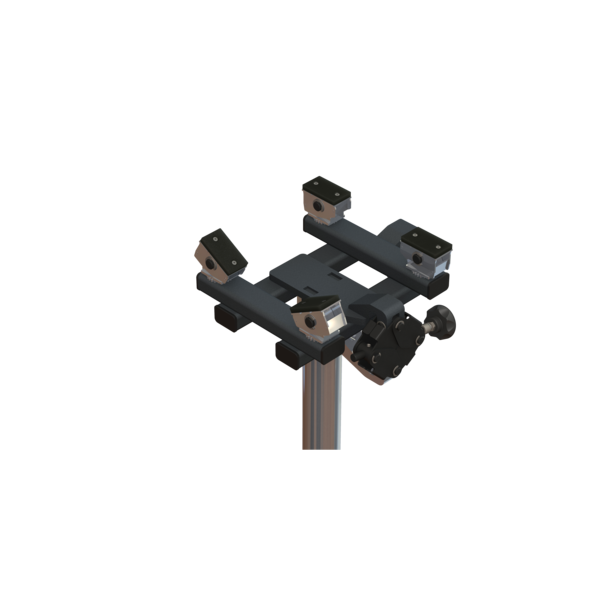

Size is optimised for a variety of gearboxes
Base support:

  • To facilitate access to difficult mounting positions, the base supports have been designed as a frame construction
  • The assemblies picked up can be easily fixed and secured with the tensioning bands included
  • The eyelets required for the tensioning bands are easy to access


Tilt adjustment:

  • Smart scissor spindle adjustment of the gear tool guarantees a very precise, sensitive and smooth positioning of the assembly even in difficult working environments
  • The two axes of the GMT 800 pivot +10° and +15°
  • Adjust using the manual turning handle supplied or else using a ratchet screwdriver
  • Tilt can be adjusted also under load


Supports:

  • Self-adjusting flat swivel supports with 90 x 50 mm rubber pads and a tilting clearance of 30° for adjustment to the gearbox
  • Included: 4 pcs


Technical data:

Support range374 x 399 mm
dimensions (L x B x H)61 x 381 x 211 mm
w/o platform supports
Load capacity800 kg (central support)
Weight w/o accessories27 kg (33 kg with flatsupports)
Support diameter
with safety support inside/outside45/80 and 45/70 mm

  • in case the gearbox is lifted outside of centre of gravity
