product details / scope of delivery

Description:

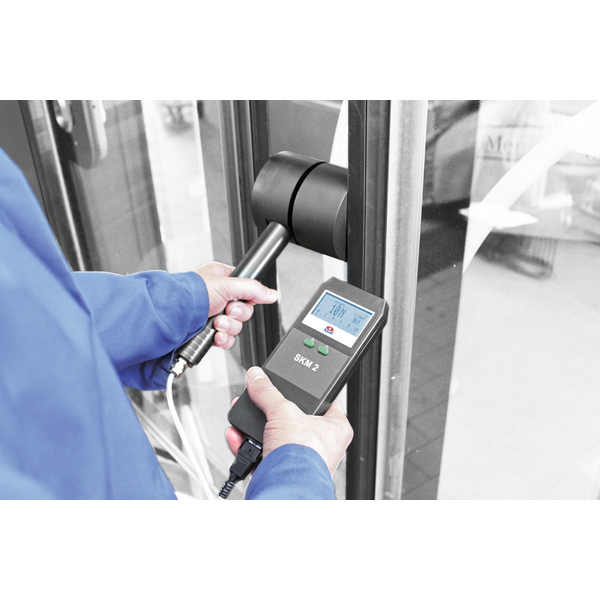

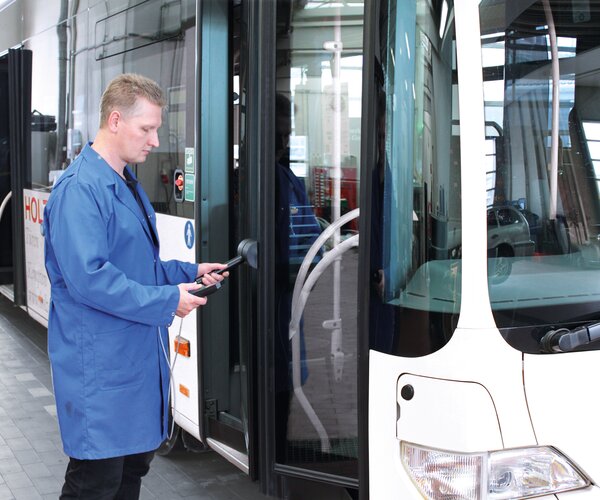

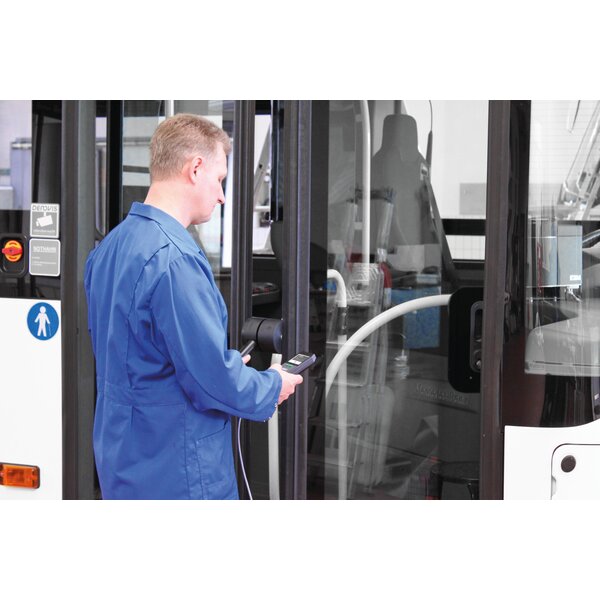

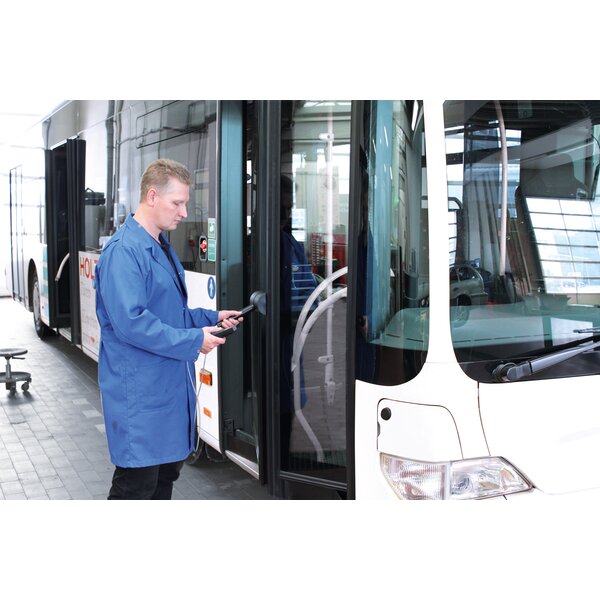

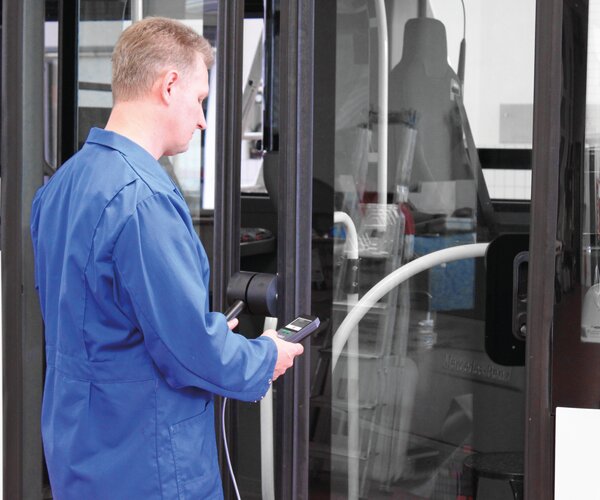

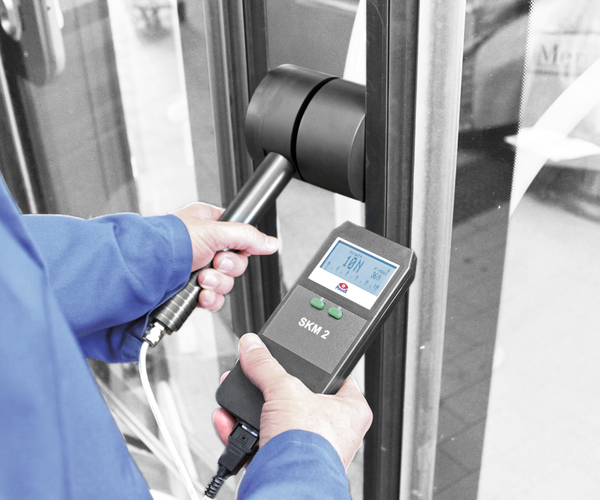

  • Measurement of the closing force of power-controlled doors
  • Meets the requirements stipulated in directive 2001/85/EC
  • Measurement of effective force (Fe) and peak force (Fs)

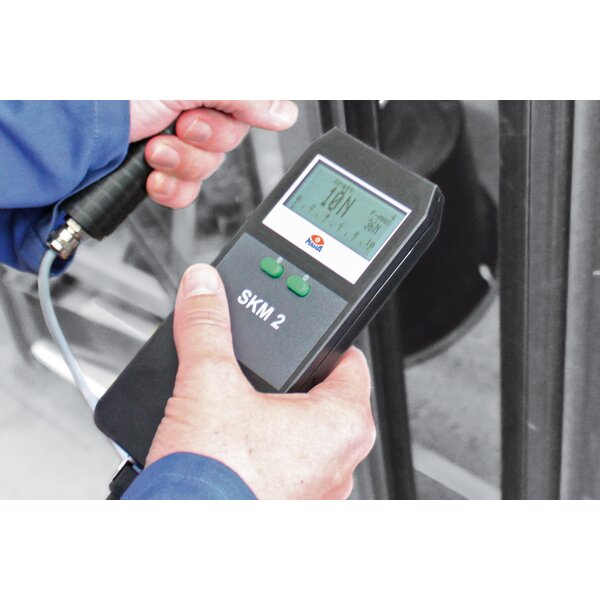

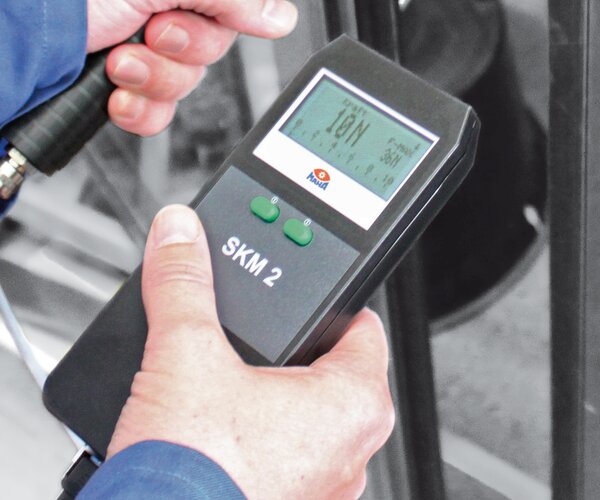

  • Hand terminal w. illuminated LCD
  • Battery-supplied, network-independent operation
  • Including plug-in charger

Downloads

Sales documents

Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Measuring range0 - 995 N
Accuracy+/- 10 N
Temperature range+ 5...+ 40 °C
Height of measuring cell115 mm
Diameter of measuring cell100 mm
Display resolution64 x 128 pixel
Supply voltage of internal NiMh battery6 V; 700 mA
Supply voltage ofpower supply unit230 V AC/ 12 V DC
Weight including handling boxapprox. 3.5 kg
